Create Smooth Curved Standing Seam Panels

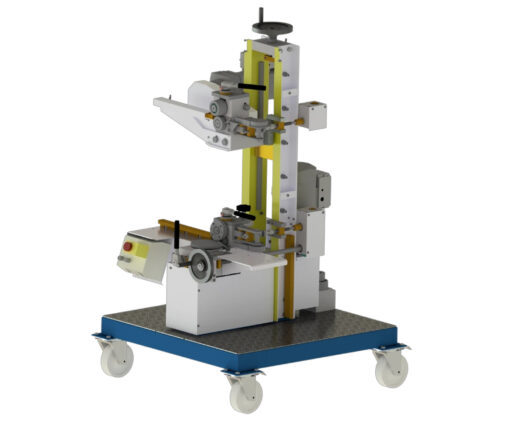

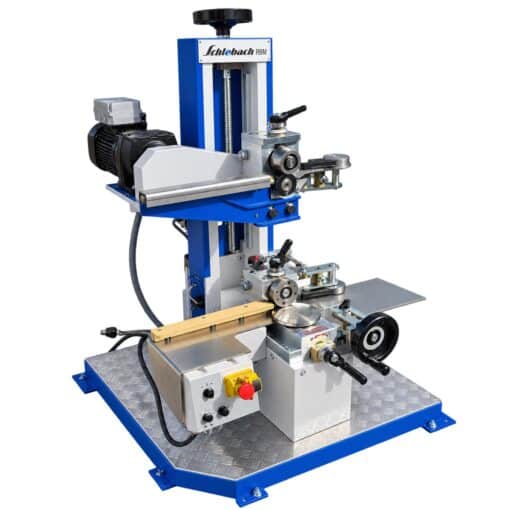

The Schlebach RBM is a professional standing seam panel curving machine designed to produce smooth, consistent curved roof panels without the visible crimp marks associated with traditional shrinking methods. Designed for double standing seam profiles produced on Schlebach roll formers, the RBM progressively curves the panel through controlled pressure for clean architectural results.

• Professional machine for curving double standing seam roof panels

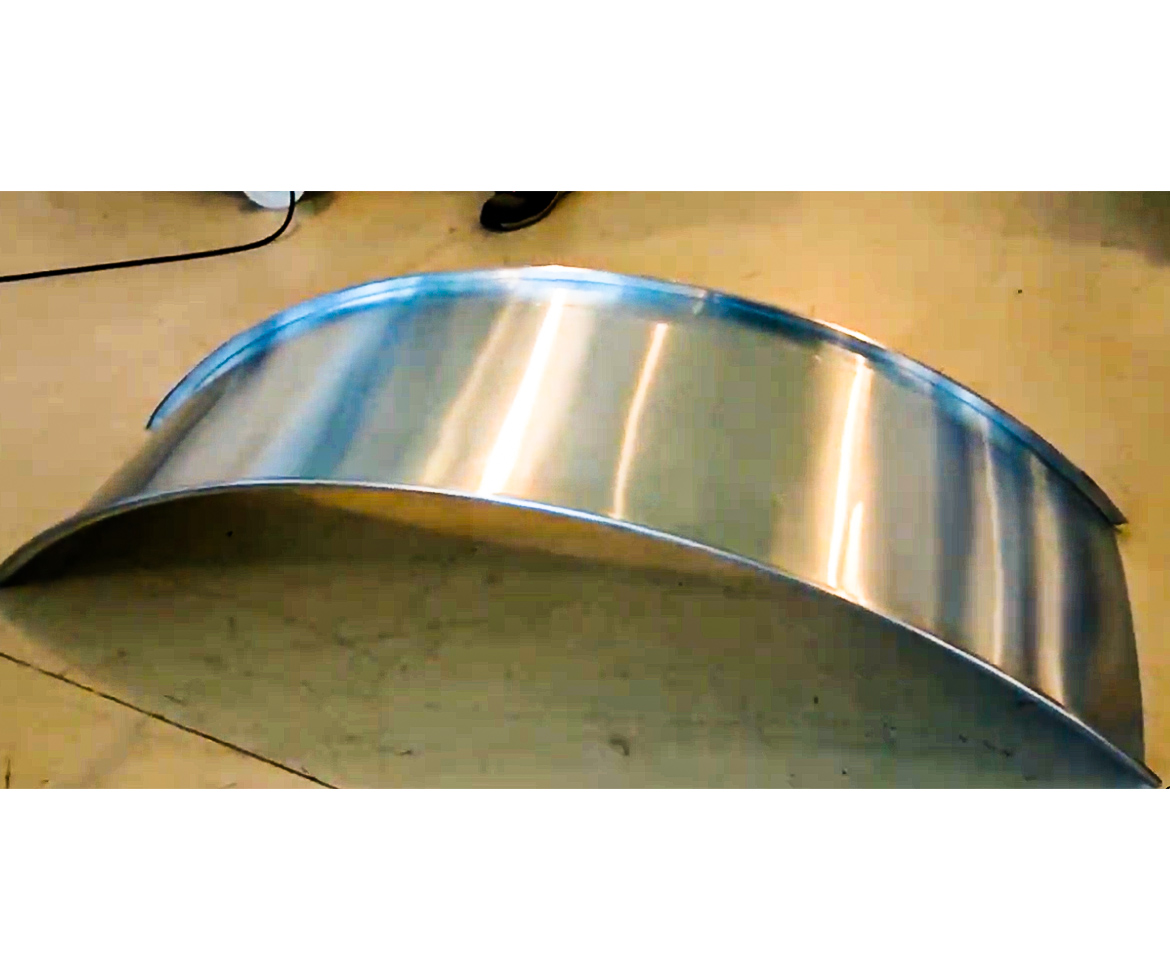

• Produces smooth curved panels without visible crimp marks
• Independently powered bending units for the male and female profile sides
• Adjustable contact pressure controls the required panel radius
• Panels with a male profile on both sides can be produced in a single work cycle
• Tapered/conical and female/female panels can be formed through multiple passes
• Handwheel adjustment accommodates different panel widths
• Continuously variable working speed from 0 to 12 m/min
• Optional rollers available for 32 mm and 38 mm profile heights
• Smallest Radii – Soft metals – 2ft, Steel – 5ft
• Weight: approximately 500 lbs.
• Power: 230 V / 50 Hz / single phase
• Dimensions: approximately 40″ × 40″ × 66″
