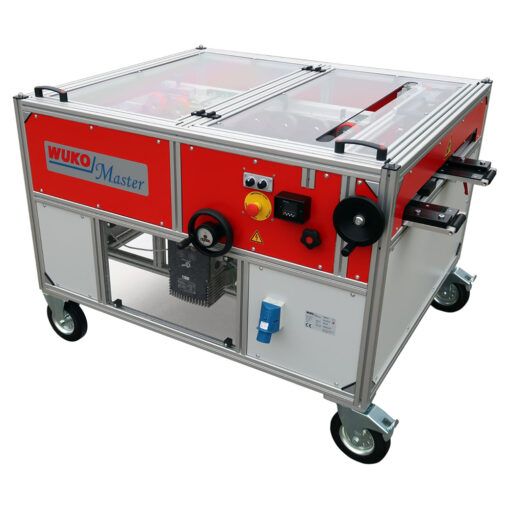

WUKO Master 0420S Mechanical Lock Roof Panel Machine

$48,400.00

Call 215-627-3855 for purchase info

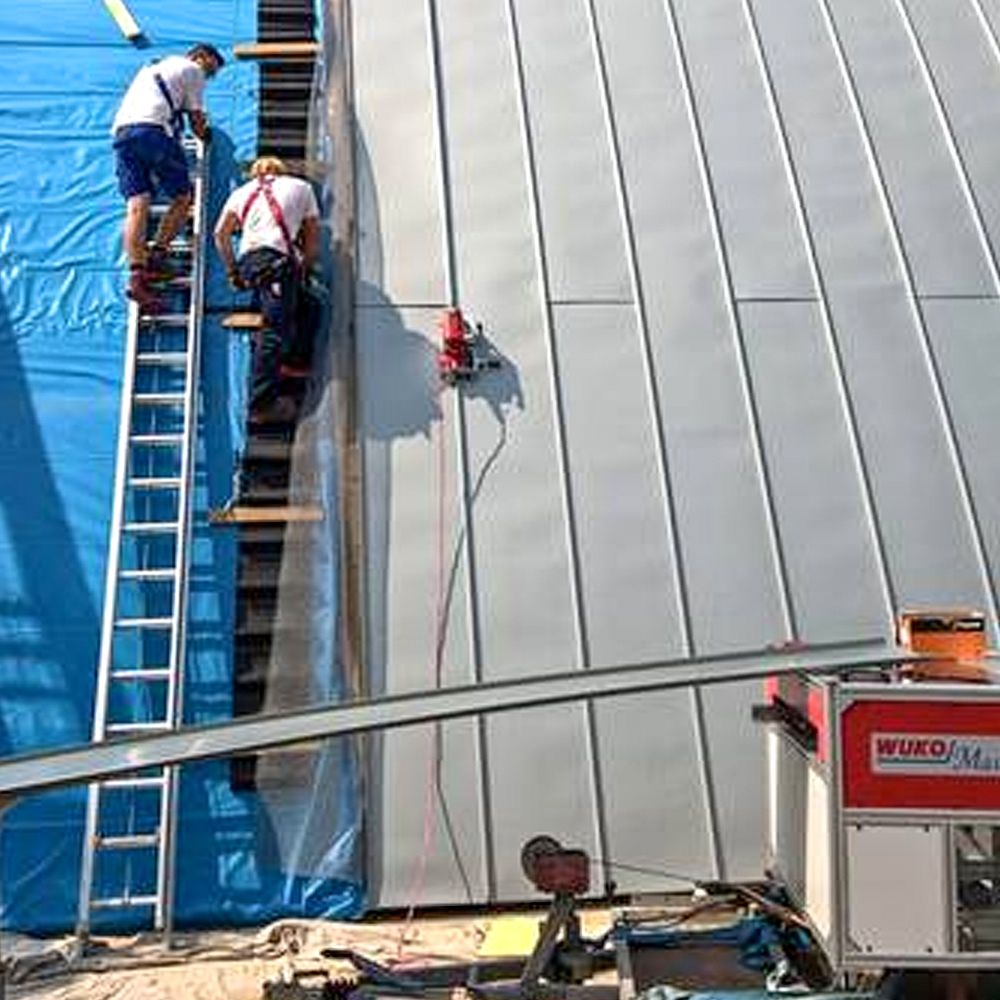

The WUKO 0420 Master Roll Former is a premium Austrian machine for producing 1″ mechanical locking standing seam panels. Designed for on-site efficiency, it allows you to form high-quality panels exactly when and where you need them—eliminating delays, reducing waste, and ensuring a perfect fit every time.

Concave & Convex Capability – Unlike other machines, malleable materials can be shaped to radius roof structures
Compact Size – Does not take much shop space to produce premium metal roofing
Dedicated machine – Maintain consistent panel production without changing rollers
This machine generally requires 4-6 week lead time

SKU:

Customer Satisfaction
Guarantee

100% secure
safe checkout

easy returns
no hassle

Product Features
Specifications
Videos

Mechanical lock panel former for 1" profiles

Up to 24 gauge steel, 26ga stainless steel, .8mm aluminum, copper, zinc

Capable of concave & convex panel production

8th forming station for aligning the panels and for curving the panels – convex or concave – smallest radius about 6 m / 20 ft

Equipped with cross cut shear

Built in shear for cutting to length after profile has been fabricated

Easily moved for shop or on-site panel production

Mobile, two fixed and two swivel castors with brakes

Material Capacities
- 24ga steel
- 26ga stainless steel
- .8mm aluminum, copper, zinc
Panel Width min / max
- 11 5/8″-32″ continuously adjustable by hand wheel over two spindles
120 V or 230 V motor (determined when ordering)

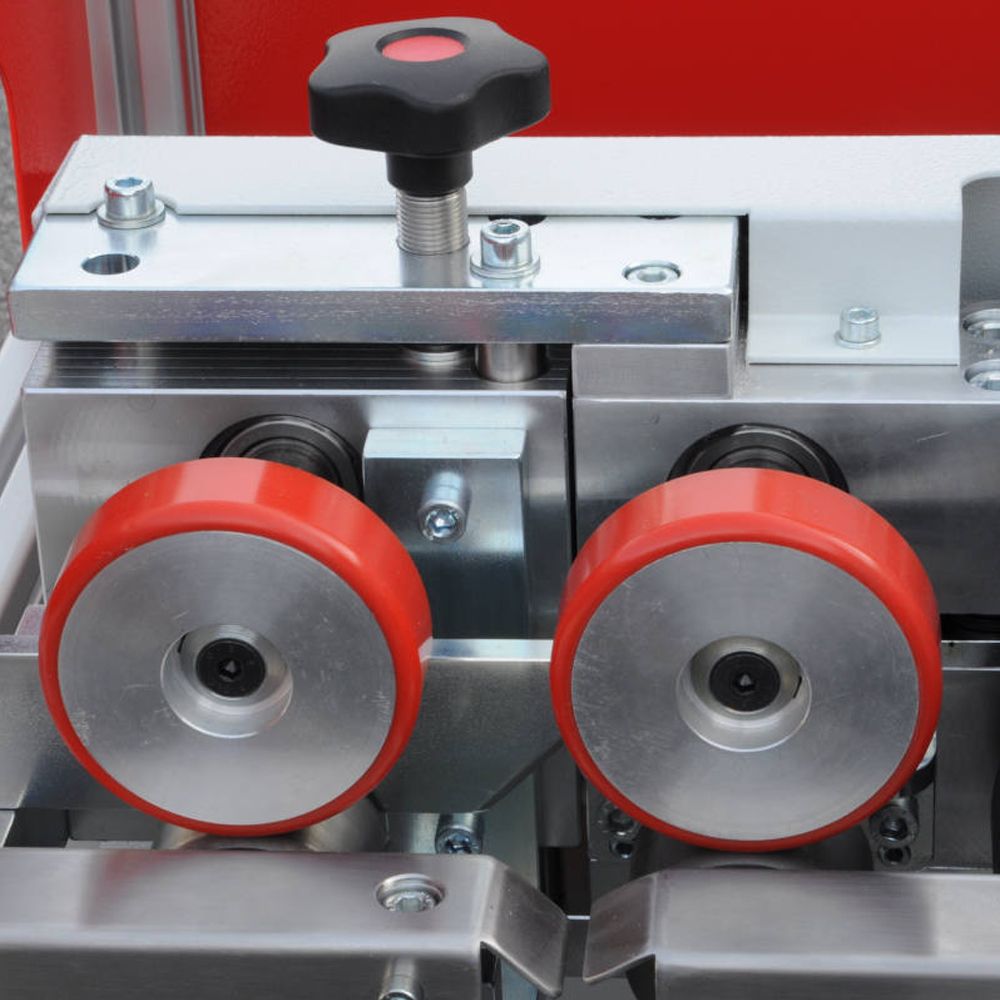

Eight hardened roll forming stations

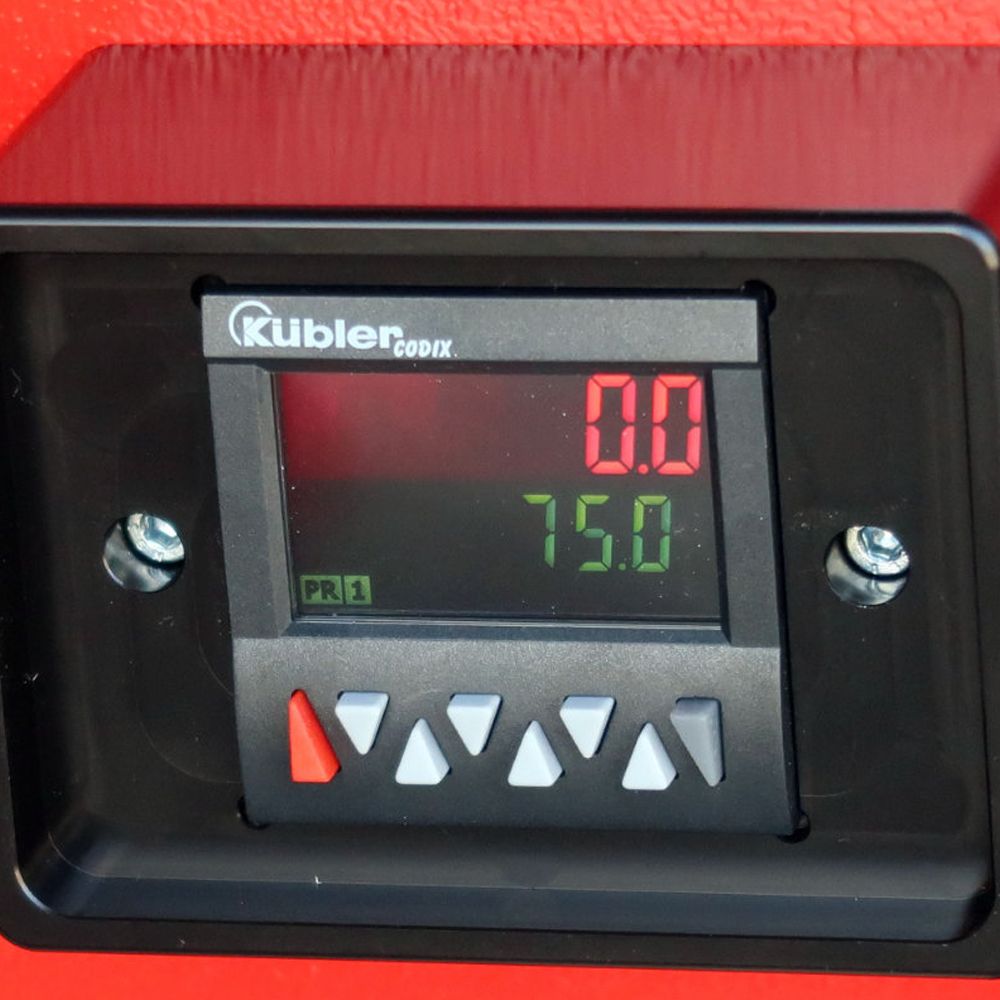

Length control panel - Used to set desired panel length prior to production
Frame elements made of transparent, impact‐resistant polycarbonate
