A Proven Workhorse for Mechanical Lock Roofing

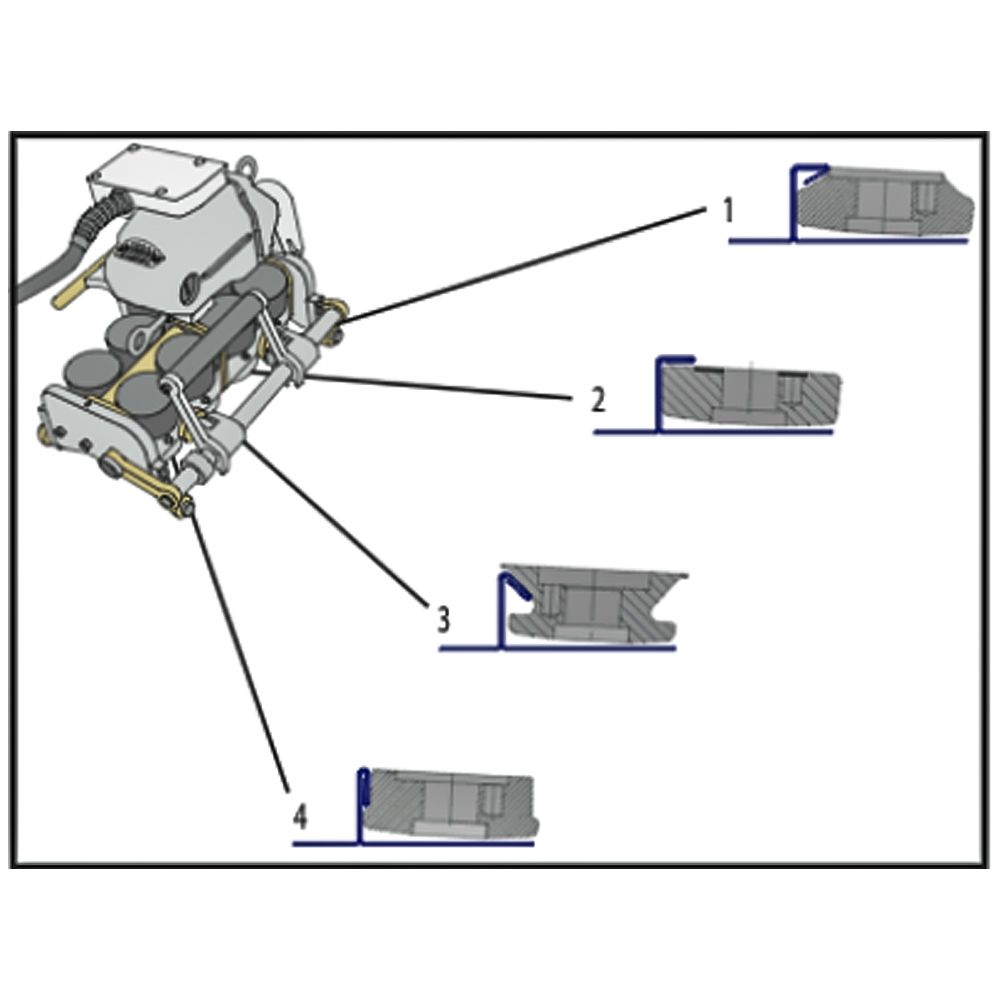

• Completes a double lock standing seam in one pass

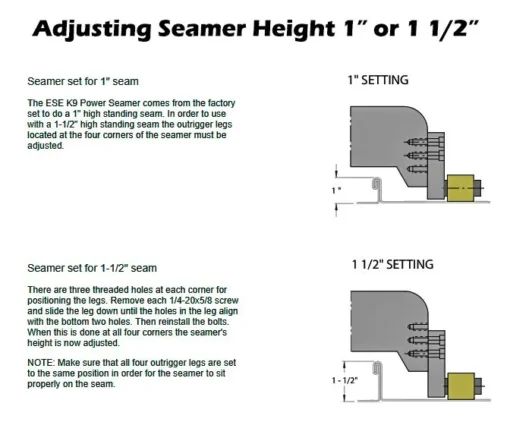

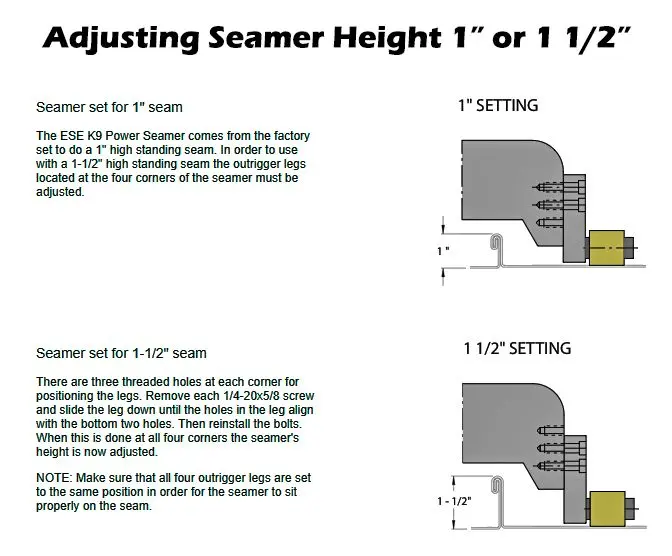

• Adjustable height 1” or 1 1/2”
• Travels along the seam without continuous handling
• Well suited for steep-slope and long-panel applications
• Lightweight 40 lb. design for a full-size power seamer
• Works with painted and unpainted materials
• Seaming speed up to 30 ft./min.
• Spring loaded swing away handle
• Power: 115V / 7 amp / single phase.
• Optional rollers allow conversion to single-lock seaming – K9 Single Lock Conversion(opens in new tab)

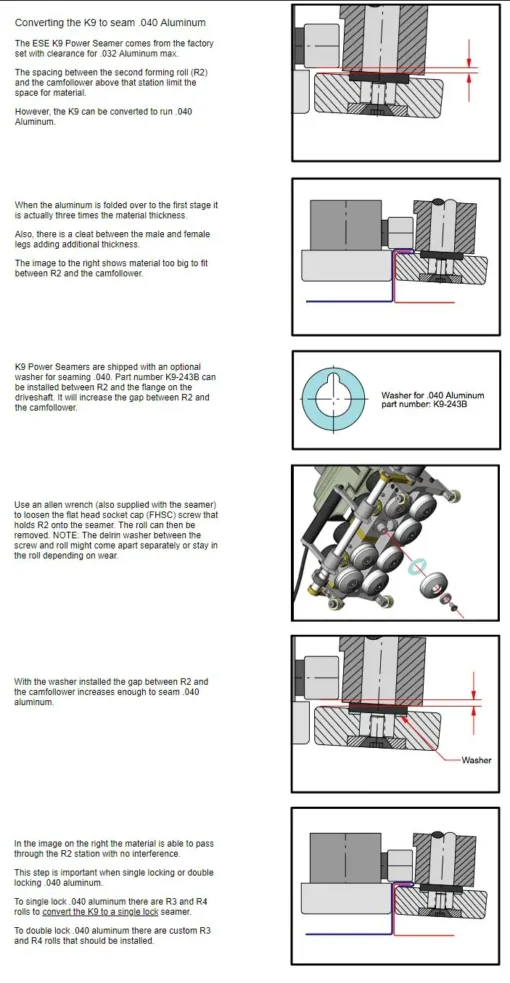

• Optional rollers increase aluminum capacity to .040″
• Made in USA

STARTING THE SEAM: Before running the K9, prepare approximately 16″ with the ESE001-C(opens in new tab) first-stage seamer and 8″ with the ESE099(opens in new tab) second-stage seamer. Read Post(opens in new tab)

IMPORTANT: The K9 is not compatible with Liberty or Schlebach panels. Confirm your panel profile before ordering.

• PARTS LIST:
  • K9 – Motor Assembly(opens in new tab)
  • ESE K9 – Back Assembly(opens in new tab)
  • ESE K9 – Sliding Block Assembly(opens in new tab)
  • ESE K9 – Locking Handle Assembly(opens in new tab)

Material Capacity

• Steel: 24 ga.
• Aluminum: .032″
• Aluminum with optional rollers: .040″
• Copper: 20 oz.
