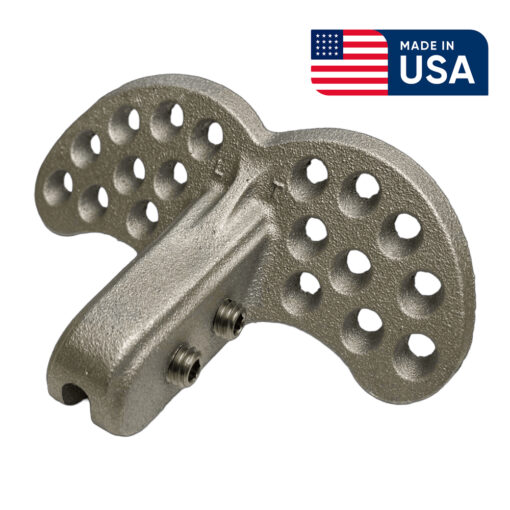

SquareLock LT200/300
Price range: $17.50 through $29.00
-

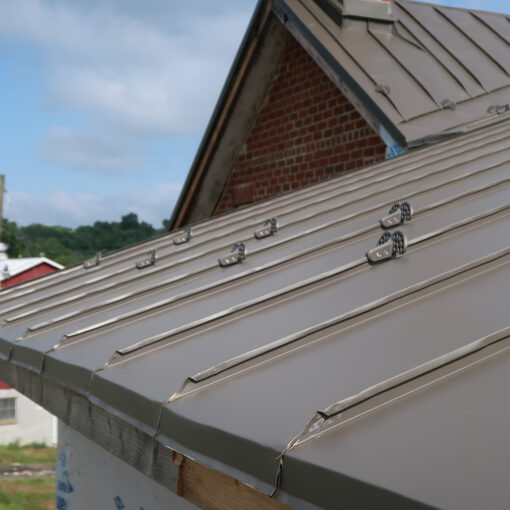

- This guard is perfect for 1″ high mechanical double lock seams
- LT200 – Slot width of 3/16″ (0.19″ thick) and suited for use with light gauge metals such as 26 gauge galvanized steel, 16oz copper, and .032 aluminum
- LT300 – Slot width of 9/32″ (.281″ thick) and suited to heavier gauge metals such as 20oz copper, 24 gauge pre-finished steel, and products of similar thickness.
- LT200/300 Cut Sheet
- Angled set screws help prevent panel damage

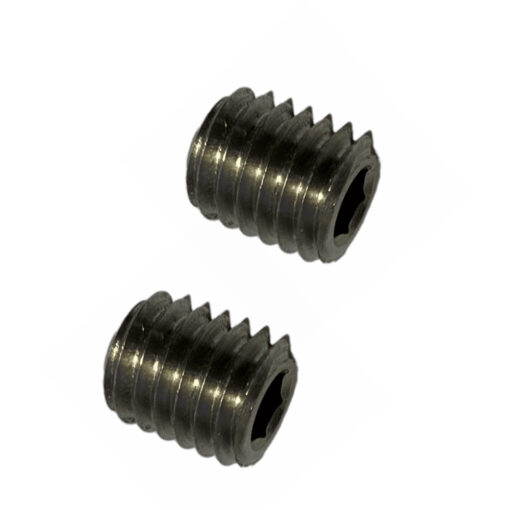

- Oval point stainless steel set screws help protect the seam from damage
- Available in mill finish or 10 factory applied Kynar® colors
- Made from Almag 35, a pure certified aircraft alloy. Its incredible elongation makes it super strong
- No glues or sealants required
- The LT guard is available in Cast Aluminum (mill finish, painted, or primer coat*) or Cast Bronze. Primer coated guards require a final coating by a contractor.
- Tighten the set screws with a 3/16” hex bit on an impact, ratchet or use an Allen wrench, do not over torque!
- Installation instructions & Warranty
- Made in the USA
- * Put color in comment when ordering or call to specify * 2-3 week lead time on powder coating
